1. Introduction

With the widespread adoption of PCIe 4.0/5.0 interfaces and the explosive performance growth of NVMe SSDs, more and more users are upgrading to high-speed SSDs. However, many motherboards—especially older platforms or compact boards—have limited native M.2 slots or none at all. Data from Q3 2025 shows the M.2 adapter card market in mainland China grew 37% year-over-year, with PCIe-to-M.2 models accounting for 82% of shipments.

NVMe to PCIe adapter cards are the solution to this storage bottleneck—they let NVMe SSDs that are normally limited to M.2 slots connect through PCIe slots, bringing high-speed storage upgrades to older desktops, mini PCs, and even servers.

2. Core Technical Principles

2.1 The Relationship Between NVMe and PCIe

NVMe (Non-Volatile Memory Express) is a storage protocol built specifically for PCIe bus communication. It bypasses the traditional SATA/AHCI controller bottleneck, fully leveraging PCIe lanes' high bandwidth and low latency. M.2 NVMe SSDs use PCIe channels with the NVMe protocol, and the adapter card essentially "translates" these high-speed signals into PCIe-level signals recognizable by the motherboard.

2.2 PCIe Bifurcation Technology

When discussing multi-drive expansion, PCIe Bifurcation is an essential concept. It refers to splitting a physical PCIe lane into multiple smaller logical lanes, allowing a single PCIe slot to support multiple devices. For example:

• An x16 slot can be split into x8 + x8 or x8 + x4 + x4

• The most common NVMe expansion configuration is splitting into x4 + x4 + x4 + x4, supporting four NVMe SSDs

Bifurcation plays an indispensable role in modern computer architecture, particularly in server infrastructure and high-end desktop platforms. Depending on implementation, PCIe Bifurcation falls into three main types: Hard Strap, Soft Strap, and Wait for BIOS.

Important Note: When purchasing a multi-drive adapter card, always verify whether your motherboard BIOS supports PCIe Bifurcation—otherwise, only one SSD will be recognized.

2.3 PCIe Switch and Signal Enhancement Technology

For users whose motherboards don‘t support Bifurcation, there's another path: adapter cards equipped with PCIe Switch chips. PCIe Switch intelligently allocates bandwidth, eliminating shared bandwidth contention issues and enabling multi-drive expansion even without native bifurcation support. Additionally, embedded signal conditioning ICs like Redriver signal re-drivers and clock buffers effectively strengthen signal integrity over longer distances, ensuring stable high-performance operation.

3. Types of Adapter Cards

3.1 Single-Slot Adapter Cards (Basic Solution)

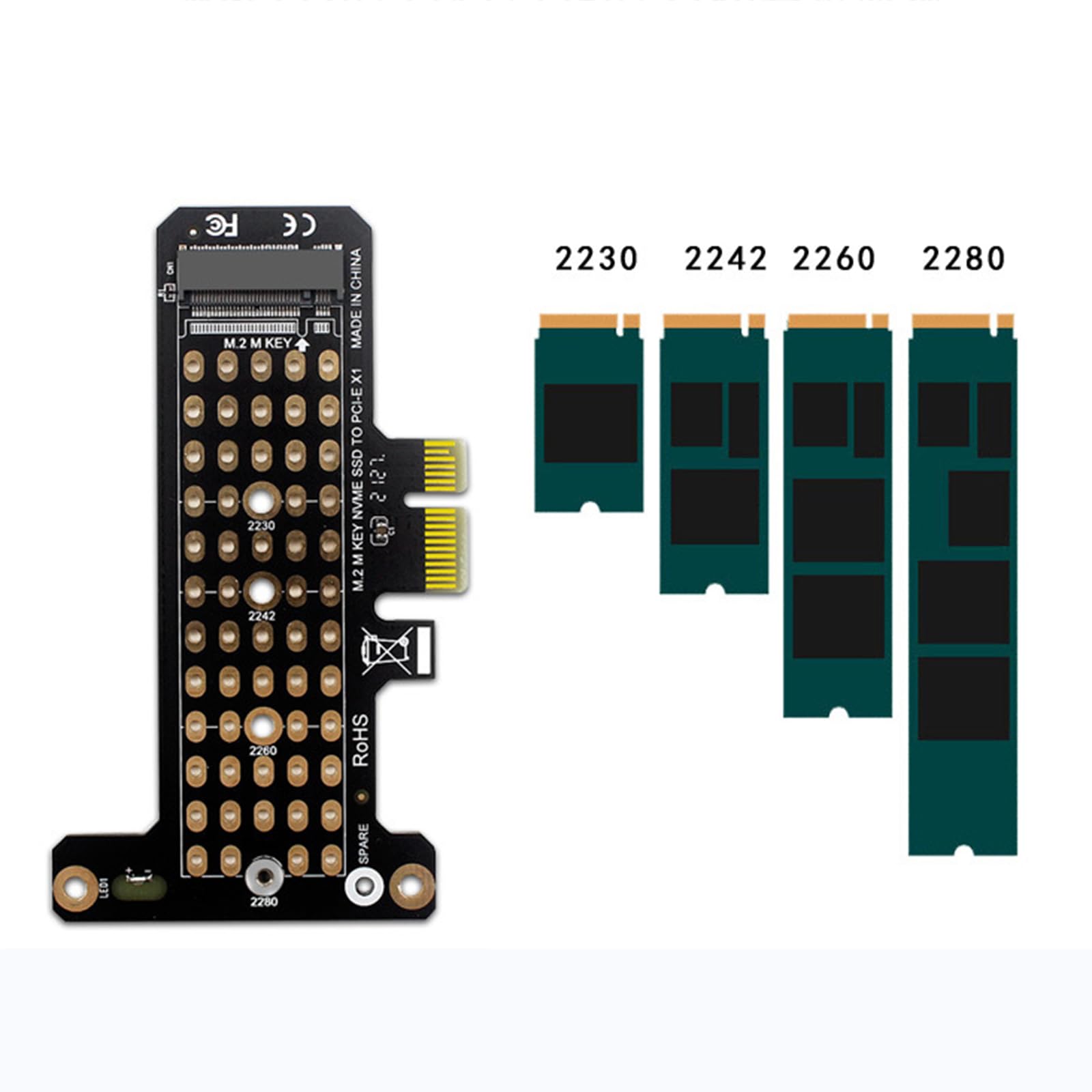

Single-slot adapter cards are the simplest and most economical NVMe expansion solution, suitable for users who just need to add one NVMe SSD. A typical example is the ICY DOCK MB305M4P-B, featuring a PCIe 4.0×4 interface, SSD tray compatible with 2230, 2242, 2260, and 2280 form factors, and equipped with thermal pads and an aluminum heatsink cover. Key considerations include PCIe generation matching, thermal design, and power stability.

3.2 Dual-Slot / Quad-Slot Adapter Cards

Dual-slot and quad-slot adapter cards are ideal for users needing large-capacity high-speed storage pools, such as video editors, 3D modelers, and database engineers. For example, the SilverStone ECM40 expansion card features a PCIe 4.0 x16 interface supporting four NVMe M.2 SSDs, with an active cooling fan for sustained operation. The ASUS Hyper M.2 x16 Gen 5 Card takes it further with PCIe 5.0 x16 interface delivering up to 512Gb/s bandwidth.

⚠️ Note: These multi-drive adapter cards typically require motherboard PCIe Bifurcation support to fully utilize all drive slots.

3.3 U.2/U.3 Enterprise SSD Adapters

For enterprise users requiring higher stability and larger capacities, U.2/U.3 NVMe SSDs are a common choice. U.2 to PCIe 5.0 adapter cards support the SFF-8639 interface, with measured read speeds exceeding 14GB/s, easily bringing enterprise-grade SSDs to consumer motherboards.

3.4 PCIe Switch NVMe RAID Cards

When the motherboard completely lacks Bifurcation support but multi-drive NVMe expansion is needed, adapter cards equipped with PCIe Switch chips are the optimal solution. The HighPoint SSD 6202A/6204A is a PCIe 3.0 x8 NVMe RAID card supporting RAID 0/1/5/6/10/50/60 modes, specifically designed for professional applications like video editing and database servers.

4. Performance Considerations & Buying Guide

4.1 PCIe Generation and Bandwidth

Different PCIe generations have a significant impact on performance. PCIe 3.0×4 offers theoretical bandwidth of approximately 3.94GB/s, PCIe 4.0×4 about 7.88GB/s, and PCIe 5.0×4 reaches 15.75GB/s. When purchasing an adapter card, confirm your motherboard‘s PCIe generation and slot specification—if your motherboard only supports PCIe 3.0, even a PCIe 5.0 SSD will be limited to 3.0 speeds.

4.2 Thermal Design

NVMe SSDs generate significant heat under load, and the adapter card‘s thermal design directly impacts drive stability and longevity. Testing shows that adapter cards with heatsinks can reduce operating temperatures by 8-12°C, which is especially critical for high-performance SSDs. Prioritize products with aluminum heatsinks or active fans.

4.3 Motherboard Compatibility

Older motherboards often encounter detection issues when using adapter cards. Recommended troubleshooting steps: enter BIOS to check PCIe lane allocation, verify PCIe slot generation, adjust CSM compatibility settings, and update motherboard firmware to the latest version. Newer adapter cards released in 2025 show significantly improved compatibility with older chipsets like B450/X299, with detection success rates exceeding 95%.

4.4 Buying Guide Quick Reference

5. Key Use Cases

5.1 Legacy Platform Upgrade (Best Value)

No M.2 slots on your old motherboard? A PCIe to NVMe adapter card costing just tens of dollars solves the problem perfectly. For legacy platforms like B75/Z77/Z97, combined with BIOS NVMe module injection, you can enable full NVMe boot support and enjoy blazing-fast system responsiveness.

5.2 Video Editing & 3D Rendering Workstations

Video editors and 3D modelers demand extreme storage performance. Using multi-drive adapter cards with RAID arrays achieves read/write speeds exceeding 6.5GB/s, enabling smooth 4K and even 8K素材 editing without lag.

5.3 Servers & Data Centers

In enterprise environments, NVMe RAID cards equipped with PCIe Switch chips can expand to support up to 32 NVMe SSDs with hardware RAID acceleration, significantly boosting storage performance for AI training, databases, and high-performance computing scenarios.

5.4 DIY All-Flash NAS

For tech enthusiasts with strong DIY skills, using PCIe to M.2 adapter cards with NVMe SSDs makes it easy to build high-performance all-flash NAS systems, achieving data read/write speeds far beyond traditional HDD-based NAS.

6. Conclusion

NVMe SSD PCIe expansion adapter technology provides flexible and efficient high-speed storage expansion solutions for all types of users. Whether you're upgrading a legacy platform, expanding a professional workstation, or building enterprise data center infrastructure, there's an adapter card that fits your needs.

Remember the three core principles when purchasing: protocol matching, thermal priority, and compatibility verification. The right adapter card paired with a high-performance NVMe SSD will fully unleash the potential of your PCIe interface!
